Analisis Pengaruh Perubahan Ukuran Cam Lobe Lift terhadap Performa pada Mesin Otto Empat Langkah

*Nicholas Kurniawan  -  Universitas Katolik Indonesia Atma Jaya, Indonesia
Arka Soewono  -  , Indonesia
Open Access Copyright (c) 2020 ROTASI

Citation Format:
Abstract

The modification of cam lobe lift value was studied to observe its effects on the volumetric efficiency and performance of a 4-stroke Otto engine with a displacement of 150 cc. The testing was done by comparing the standard cam lobe with 7,36 mm lift and two other cam lobes with a higher lift, which is 8,24 mm and 8,53 mm. ANSYS software was used as a method to acquires the volumetric efficiency value, while a dynamometer was used to measures the performance. From the calculation and testing that has been done, the usage of both modification cam lobes increase the volumetric efficiency and performance of the engine. Compared with the standard cam, the cam with 8,53 mm lift result in an increase of volumetric efficiency from 78,51% to 84,1% and performance from 15,36 WHP to 15,76 WHP at 9000 rpm.

Note: This article has supplementary file(s).

Fulltext View|Download View|Download |  Data Set

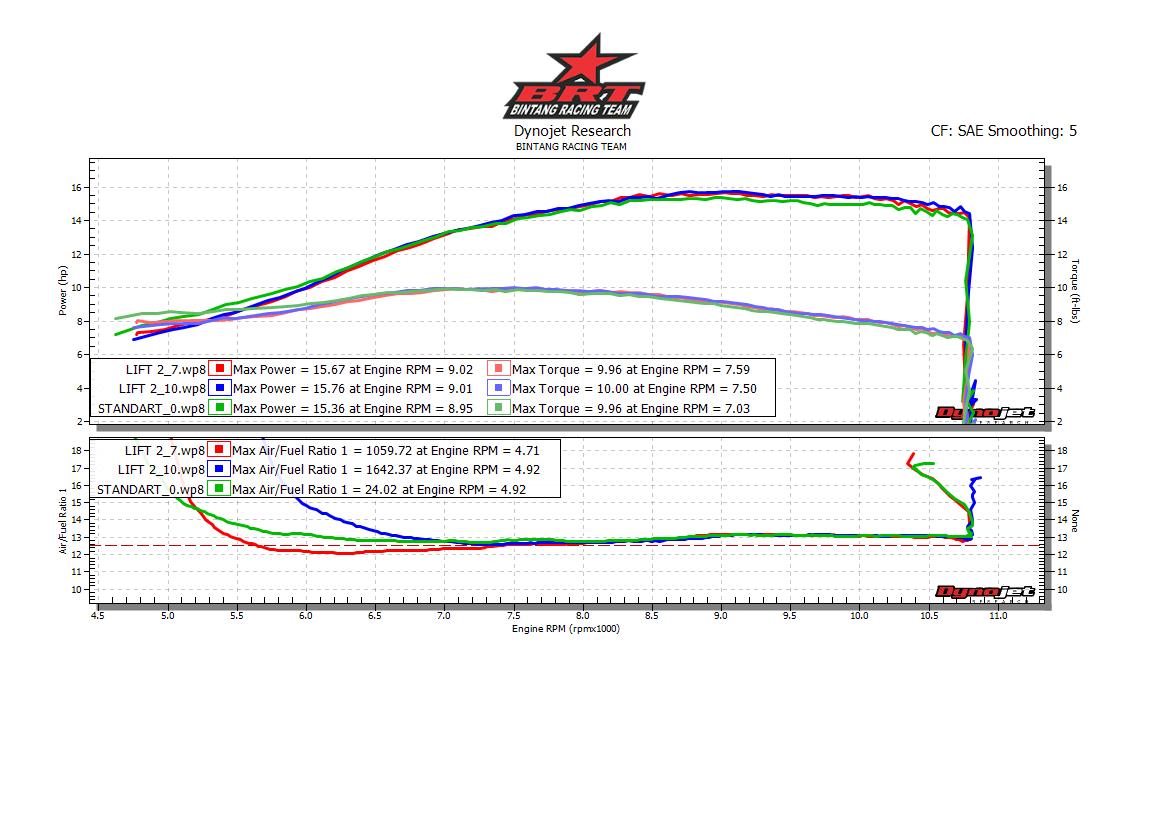

Data Dynotest
Subject
Type Data Set
  View (121KB)    Indexing metadata
 Data Set
Hasil Volume Flow Rate
Subject
Type Data Set
  View (15KB)    Indexing metadata
Keywords: Cam lobe, volumetric efficiency, performance, power, torque.
Funding: Universitas Katolik Indonesia Atma Jaya; Bintang Racing Team Modification Workshop
